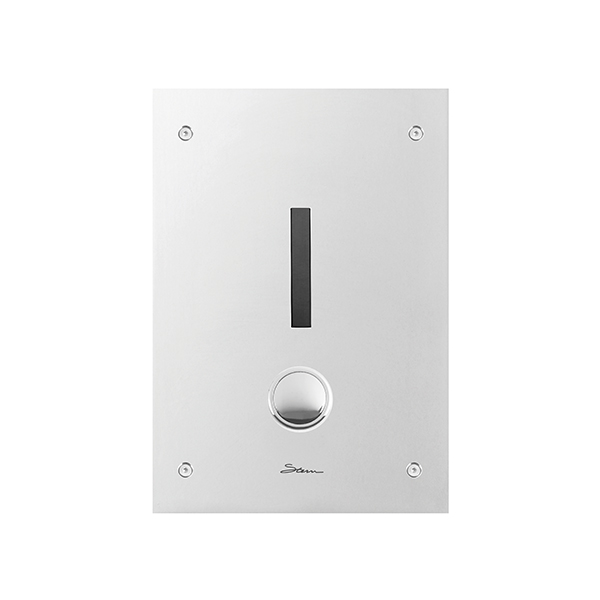

Touch free electronic flush valve for water closet. Solid bronze valve body with stainless steel AISI316 cover plate with tamper proof screws for increased vandal protection. Automatic infrared sensor activated with self-adjusting detection range. Features a manual override push button with anti-block feature. Touch free electronic flush valve for water closet. Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel. Automatic infrared sensor activated with self-adjusting detection range. Concealed installation with 1” angle stop and 1.5” vacuum breaker set and 6 second delay-in time to prevent ghost flushing. Powered by 9V battery. Auto-adjustable sensor range which adapts to the site conditions. Flushing duration and other settings are adjustable by remote control. Includes an adjustable tail piece connection and piston with debris screen and solenoid with self-cleaning mechanism. ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012
Application

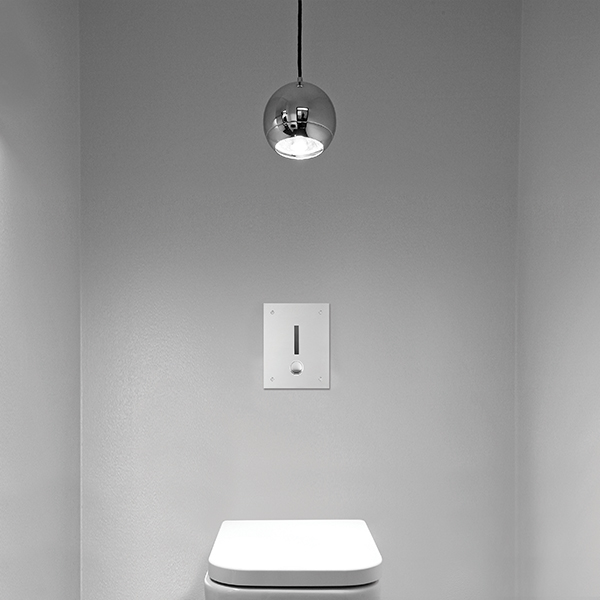

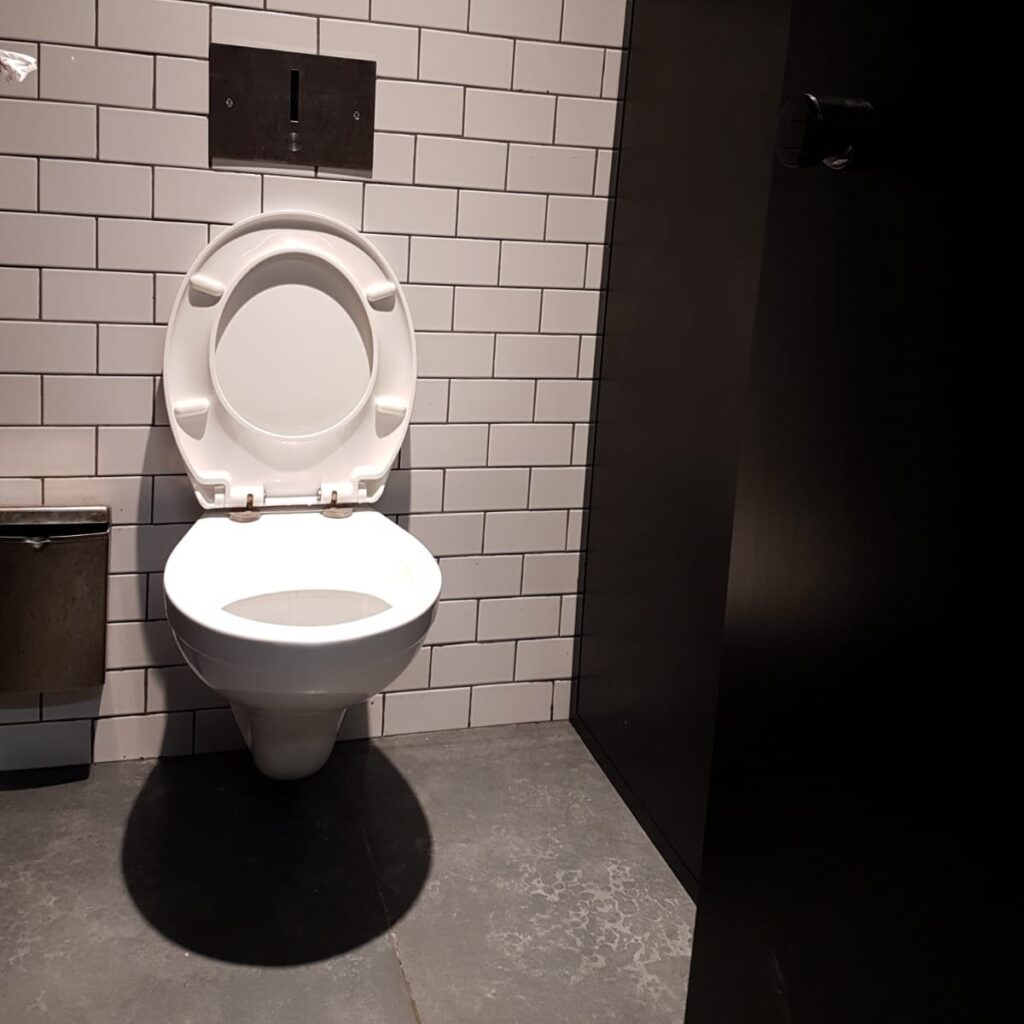

Helps washrooms to stay neat and cleaner, saves water. Ideal for educational institutions, gas stations, restaurants. Due to its minimalistic style it’s also perfect for any locations with high design standards.
Use
Touch free electronic flush valve for W.C. Water will start flushing once the user moves away from the W.C. If the user has spent less than one minute in front of the sensor a half flush (3 liters) will take place. If the user has spent more than one minute in front of the sensor, a full flow (6 liters) will take place.
