Easy and quick retrofit “plug & play” kit to convert a manual flush valve for urinals into a touchless urinal control.

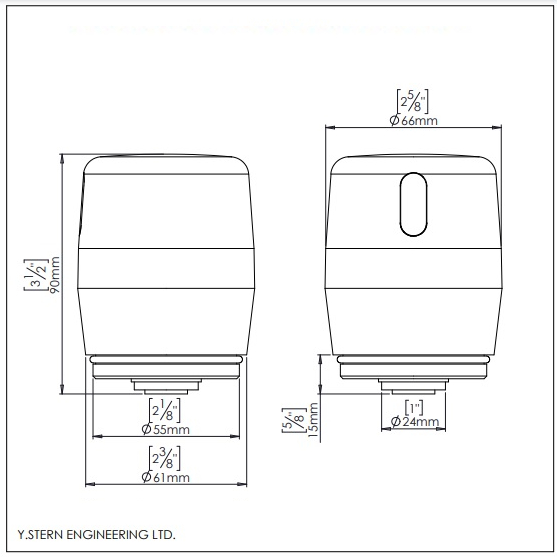

Activated by infrared sensor and powered by an internal 9V battery supplied with the product. Suitable for retrofitting manual urinals with 60.5 mm diameter, thread M55x1.5.

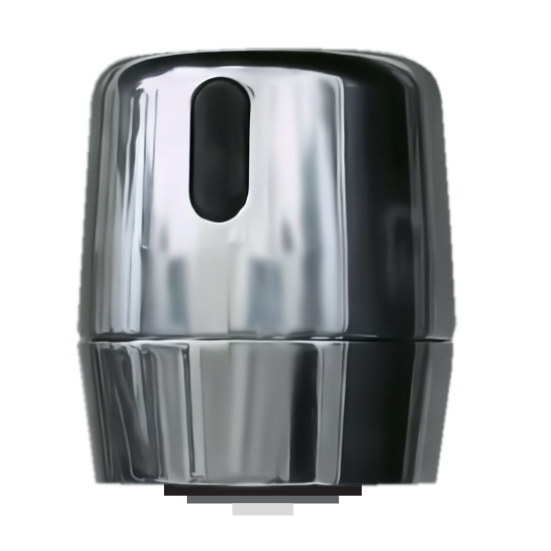

Alfaro’s robust full chrome plated brass cap comprises the IR sensor, the solenoid valve and the 9V battery.
24 hours hygiene flush is included.
To maximize hygiene, this product is equipped with a 24 hour duty flush. The flush takes place after 24 hours of non-use. Prevents the trap seal from drying out, possible freezing of pipes and potential bacteria in standing water. This function can be disabled using the optional remote control. Pre-flush optional upon request.
Alfaro – 120100
For more information, please fill out the form below:
OPERATION
Once Alfaro’s retrofit kit is installed, the product is converted into a touch-free electronic flush valve for urinals. The water will flush once the user moves away from the urinal.
APPLICATION
Converts a manual flush valve into a touch free urinal control providing an extra layer of protection from disease-causing bacteria.
Helps washrooms stay clean and saves water.
Ideal for educational institutions, gas stations and restaurants.
| Installation |
Wall mounted exposed |
|---|---|
| Power source |
9V Lithium Battery |
